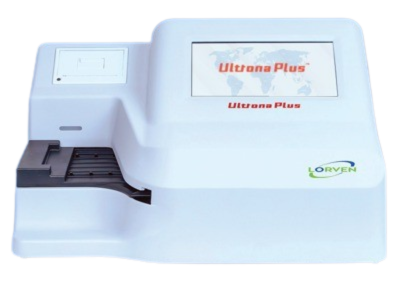

Ultrona Plus Urine Analyzer:
Urine Analyzer:
Offering Reliable Urine Analysis Solution for: Kidney Disease & Urinary Tract Infection & Liver Disease & Diabetes.
• High-precision urine analysis for reliable clinical results
• Fast turnaround time for improved workflow efficiency
• Automated testing for consistent and accurate performance
• Microalbuminuria is a sensitive indicator of early kidney damage in diabetes or in hypertension.
• ACR is dG reliable marker as it is not affected by factors such as hyperglycemia, exercise, fever, protein intake in the diet and drugs; and more convenient than UAE (gold standard of microalbuminuria diagnosis).
• The KDOQI Diabetic Nephrology Guidelines and the American Diabetes Association (ADA) recommended ACR as the preferred method for screening microalbuminuria in 2007.
• Microalbuminuria is defined as ACR 23.5 mg/mmol (female) or 22.5 mg/mmol (male).
Advantages of Ultrona Plus Urine Analyzer:
• Larger memory with 10000 data records & with a speed of 600 tests/hour.
• Comprehensive Range of Test Menu
• Built-in Thermal Printer for Instant Printing
• Language Customizable Easy Operation
• Testing Up to 14 Parameters in One Go
• Touch Screen Operation with Big Screen for
• Analyte Combination Customizable.
Comprehensive Range of Test Menu Testing Up To 14 Parameters in One Go.
Technical Specifications – Ultrona Plus Urine Analyzer:
Testing Principle:
Through reflectionphotometer to evaluate the color change of urinalysis strip,then calculate the concentration of related items and output semi-quantitative results.
Testing Wave Lenght:
460nm, 550nm, 620nm.
Testing Speed:
600 test / hour.
Respeatability:
Coefficient of Variation CV <1%
Stability:
During 8 hours of operation,
Coefficient of varation CV <1%
Output Options:
Built-in 57mm thermal printer.
LCD Screen:
7 inches touch screen.
Report Storage:
Stores up to 10000 sets of results.
External Ports:
Type- cx1: USB x2.
Power Supply:
Input: AC 100-240V 50/60Hz 0.5A;
Output: DC 5V /3A.
Charging Voltage:
AC 100-240 V 50/60 HZ.
Dimensions & Weight:
Size: 380mm * 330mm * 215mm ( L*W*H).
Weight: 6.5 kg.
