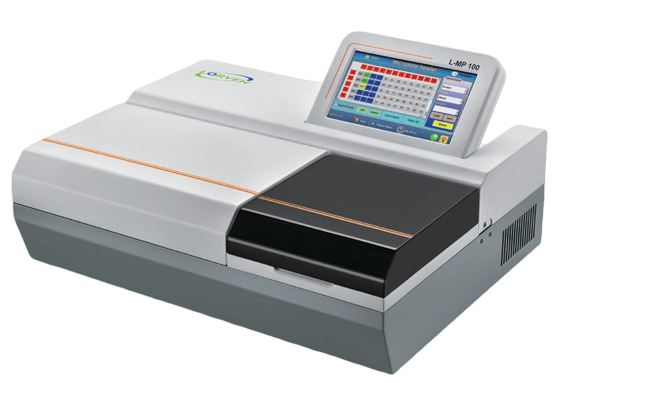

L - MP 100 Microplate Elisa Reader
Microplate Elisa Reader.
• 8G RAM, Backup 100,000+results.
• 12V/20W Lamp, Lifetime>2,000 Hours.
• Embedded operating system enables working without.
Specifications:
Measurement System:
• 8-channel spectrum system.
Filters:
• 405nm, 450nm, 492nm, 630nm, another
• 4 customized wavelengths.
Plates:
• Flat plate, U plate, V plate.
ABS Range:
• 0.000~4,000ABS.
Resolution:
• 0.001 ABS
Accuracy:
• ±0.03A
Repeatability:
• CV≤1.0%.
Reading Speed:
• Single wave≤5s, dual wave≤10s.
Calculation Rule:
• ABS, Quantitative, Qualitative, Factors, Single-point Linearity, Two-point Linearity, Multi-point Linearity, Multi-point Nonlinearity, Exponential Fitting, Logarithm Fitting, Power Fitting, Dual Wavelength.
Power:
• 100-240V AC, 50/60Hz.
Ambience:
• Temperature 10-40°C, relative humidity 20-85%.
Dimension:
• 540*370*150mm(L*W*H).
Weight:
• 9.5kg.
Touchable Operation
• 7 inches color LCD touch screen, plate can be layout on screen directly and easily.
• Calibration results can be reviewed, and calibration curve can be reloaded.
Multiple Vibration strengths
• 3 vibration speeds available, vibration time up to 60s.
Higher Compatibility Workstation
• External USB printer available.
• Multiple function workstation available to print out multiple formats reports.
• The workstation can also receive & process test results from the electrolyte analyzer, the HbAlc Analyzer, etc.
