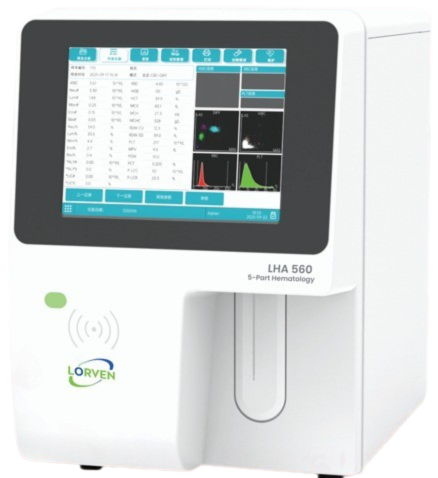

LHA 560 Fully Auto 5 Part Hematology Analyzers
Accurate data:
Advanced sweeping technology to ensure the accuracy of PLT
Patented Technology:
SMART-FLOW liquid circuit invention patent technology.
LCD touchscreen:
High-definition color display, sensitive touch, support the operation by using gloves.
Low blood consumption:
CBC+DIFF mode: ≤ 20µl.
5 Part Hematology Parameters:
Measurement technology:
• Semi conductor Laser Scattering Technology.
• Flow cytometric techniques.
• Three-dimensional scatter plot analysis technology.
• Electrical impedance measurement technology.
• Cyanide-free HGB measurement technology.
Measurement speed/volume of blood used:
• 60 samples/hour.
• CBC+DIFF mode: ≤ 20µl.
Measurement Items:
• Reported parameters (25 items):
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDWP-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS#.
• Study parameters (4 items): ALY%, ALY#, LIC%, LIC#.
• Two scatter plots, one 3D scatter plot (as needed) call up 2 2D plots), one WBC/BASO scatter plot, the 2 histograms (RBC histogram, PLT histogram).
Storage Capacity:
Storage of 100,000+ copies (including histograms, scatter plots, patient information).
Usage environment:
• Wide range in put: Ac. 100-240V, 50/60Hz.
• Temperature: 10-30% Humidity: 20-85%.
• Atmospheric pressure: 70-106 KPa.
• Altitude: ≤ 2000 m.
Mode:
• CBC+ DIFF mode.
• Intravenous whole blood mode, pre-diluted peripheral blood mode, and Anticoagulated peripheral whole blood mode.
LCD touch screen:
• 10.4-inch.
• Resolution 1366*768.
Extended Interface:
• II networkport, 4U.
• Two-way US system supports HL7 protocol.
• External USB printeror WIFI connection (optional).
• Built-in RFID reader scanning (optional).
Extended Size/Weight:
• W350 H450 D430 (mm).
• About 28 kg.
