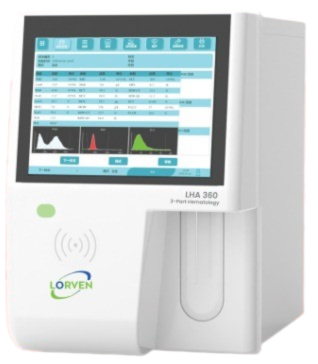

LHA 360 Fully Auto 3 Part Hematology Analyzers
3 Part Hematology parameters:
Technology:
• Impedance + Photometric Technology for accurate cell counting and hemoglobin measurement
• Automatic Dilution & Mixing System
• Automatic Cleaning & Anti-Clogging Function
Touch Screen:
• 10.4-inch Full-Color Touch Screen.
• Intuitive UI for easy operation and quick result navigation.
Measurement Speed|Sample Volume:
• Throughput: 60 samples per hour (standard 3-part analyzer speed).
• Sample Volume: CBC+DIFF mode ~10–20 µL whole blood.
Storage Capacity:
• Up to 100,000+ test results with histograms.
• Patient ID management, QC records & calibration data.
Items (Parameters Measured):
CBC + 3-Part DIFF, WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%
RBC, HGB, HCT, MCV, MCH, MCHC
RDW-CV, RDW-SD
PLT, MPV, PDW, PCT
Size | Weight:
• Dimensions: W315*
• H416* D411 (mm)
Weight: 18–22 kg.
Result Output | Extended Interface:
• Built-in Thermal printer or External printer support
• USB Ports, 1 network port, 1 serial port
• Two – way LIS system supports HL& protocol
• Built-in RFID reader and write.
Speed | Blood Consumption:
• Analysis Speed: ~60 tests/hour.
• Blood Consumption: 10–20 µL per test.
Mode:
• Intravenous whole blood mode
• pre-diluted peripheral blood mode
• Anticoagulated peripheral whole blood mode.
Usage Environment:
• Operating Temperature: 10°C – 30°C.
• Humidity: 30% – 85% (non-condensing).
• Atmospheric Pressure: 70 kPa – 106 kPa.
• Altitude: Suitable for use up to 3,000 meters.
• Wide Input: AC 100–240V, 50/60 Hz.
